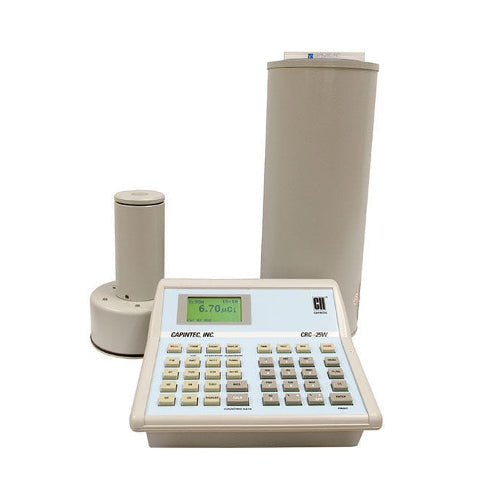

CRC 25W Dose Calibrator/Well Counter

As a combination of the popular CRC®-25R Dose Calibrator and the CAPRAC®-R Well Counter, the CRC®-25W dose calibrator provides advanced features with the speed and accuracy you need to measure activity and prepare doses. Its ion chamber is one of Capintec's time-tested, high pressure well designs capable of measuring a dose as high as 6 Ci (250 GBq) of Tc 99m with high accuracy. The CRC®-25W also features chamber plug-and-play capability.

OVERVIEW

OVERVIEW

For wipe testing, the CRC®-25W allows the user to define specific counting procedures (protocols) with trigger levels for work, patient, unrestricted areas and sealed source leak tests. The CRC®-25W also performs counting functions for wipe
tests in as little as 6 seconds at activities as low as 1 nCi. Low activities are measured with a drilled well high sensitivity Sodium Iodide (NaI) detector. The 6-channel pulse-height analyzer also provides the user with pulse amplitude discrimination, which can be used to help with radionuclide isotope identification. The chamber and counter of the CRC®-25W are combined in a menu driven, push-button interface that is easy to learn and use. Hardwired microchip control eliminates analog switches and dials, while improving measurement response time.

FEATURES

FEATURES

• USB and RS232 ports
• Software upgrade via SD flash card
• USB printer capability
• Chamber plug-and-play capability
• Chamber can be placed 100 feet from the readout unit
• Built-in dose calibration, quality control and self diagnostics
• Well counter for wipe tests and laboratory tests
• User-definable protocols for wipe testing
• Large character, high visibility display with automatic backlighting
• Over 80 nuclides in memory
• Automatic energy calibration, zeroing and background subtraction
• Hard copy records of data available from optional dot matrix printer
• Vial and syringe labels on adhesive-backed strips available from
  optional mini-printer
• 6-channel pulse height analyzer with spectral pulse amplitude discrimination
  for preliminary isotope identification
• Compatible with nuclear medicine information management systems
  via USB or Rs-232 ports
• Calculation of printable dose table
• Inventory control maintains inventory of unit dose and kits
• Automated linearity and geometry testing
• Radiochromatography QC package

SPECIFICATIONS

SPECIFICATIONS

Well Detector
• Type: Sodium Iodide (NaI) drilled-well crystal detector
• Energy Discrimination: Fixed range MCA, channel windows are
15-100, 100-200, 200-400, 400-660, 660-800 and >800 keV
• Warning Trigger Levels: User-definable
• Tests: Daily test by standard sources (Cs-137 or Ba-133), data
and program memory configuration

Ionization Chamber
• Type: Thin wall, deep well, high pressure
• Measurement: Auto ranging
• Activity Range: Up to 6 Ci (250 GBq)
• Resolution: .001 mBq (.01 μCi)
• Response Time: Within 2 sec., for low activity sample, 4 to 16
sec. (user selectable)
• Tests: Daily tests include Auto Zero, Background Adjustment,
Voltage Test, Data Check, Accuracy and Constancy

Display Screen
• Type: Dot matrix liquid crystal display
• Bq/Ci Reading: User selectable or fixed
• Calibrator Values: Selected radionuclide,calibration number,
measured activity and display units (Bq/Ci)
• Counter Values: Wipe and lab test results

Electrometer
• Accuracy: Better than ± 2%
• Linearity: Within ± 2%
CRC-25W Dose Calibrator ®

Nuclide Data
• Nuclide Setting Keys: 8 pre-set, 5 user selectable
• Calibration # Key: Calibration # Keys for Over 200 nuclides
• System Memory: Over 80 nuclides (w/cal number and half-life)

Standard Source Data
• System Memory: Co-57, Co-60, Ba-133, Cs-137, Ra-226 standard sources
Molybdenum-99 Assay
• Methods: CAPMAC® & canisters
• Measured Values: Mo-99 elution, Tc-99m,Tc-99m/Mo-99 ratio

PC Port
• Interface: RS-232C and USB port
• Compatibility: Standard nuclear medicine management systems

Printer Port
• RS-232 & USB

Power Requirements
• 100-240 VAC (50/60 Hz) 100 MA

Tests
• Diagnostics: Full test of program, system memories

Cable
• Printer (Optional): 1.8m (6ft)

DIMENSIONS

DIMENSIONS

Console Dimensions

• Height: 13.7cm (5.38in)
• Width: 26.0cm (10.25in)
• Depth: 26.7cm (10.5in)
• Weight: 1.8kg (3.9lb)

• Height: 43.8cm (17.25in)
• Diameter: 17.2cm (6.76in)
• Weight: 13.6kg (30lb)
• Well Diameter: 6.1cm (2.4in)
• Well Depth: 25.4cm (10.0in)
• Cable Length1: 3.7m (12ft)

• Height: 23.8cm (9.38in.)
• Diameter: 15.2cm (6in.)
• Weight: 6.9kg (15.2lb.)
• Well Diameter: 1.7cm (.67in.)
• Well Depth: 3.8cm (1.5in.)
• Cable Length: 2.7m (9ft.)
