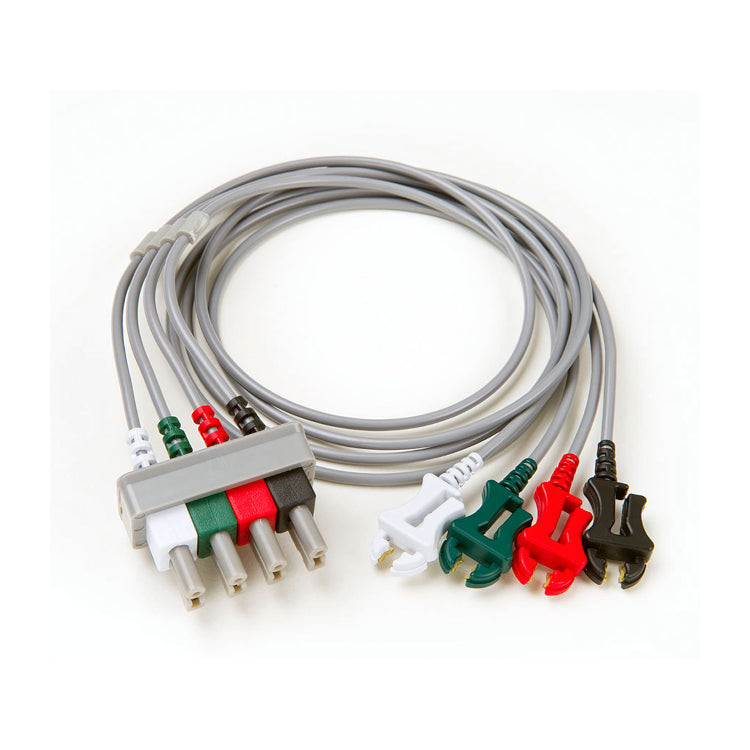

Ivy Biomedical - Metallic ECG Leads

Ivy Biomedical SKU: 590433 – 24”

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Size

24" 30" 36"

Product details

Type Cardiac Monitoring
Vendor Ivy Biomedical
SKU 590433 – 24”

Please use the inquiries button to obtain details on how to order.

If you require detailed information that is not shown below, please feel free to send us an inquiry and we will get straight back to you.

Product Information

The Model 7600 is Ivy Biomedical System’s 5th generation cardiac trigger monitor used in applications requiring precision ECG R-wave synchronization for gating host systems on and off. The Model 7600 incorporates an intuitive, menu-driven, touch-screen user interface, simplifying operation for clinicians and technicians.

The 7000 Series leads are available in multiple lengths and all come with a 12 month Warranty.

OVERVIEW

The Model 7600 is a favorite for use in cardiovascular diagnostic imaging studies, especially in gamma camera, nuclear medicine, and molecular imaging applications.

Acquiring reliable and consistent ECG triggers can often be a challenging task, and selecting the right ECG vector can be problematic. The Model 7600 uses a 4-lead ECG configuration in order to provide automatic lead selection capability. This feature monitors each ECG vector simultaneously, and automatically selects the best ECG lead for triggering, thereby delivering reliable triggering even under challenging or changing patient conditions. Red markers on the ECG waveform indicate when and where triggering occurred for visual verification and assurance.

FEATURES

The Model 7600 offers a compact 6” diagonal color TFT display, ECG simulator, heart rate limit alarms, RS-232 communication interface, multiple factory configured trigger output pulse width and amplitude options, optional integrated strip chart recorder, optional roll stand mount, and more at an affordable price.

SPECIFICATIONS

The Model 7600 offers trigger pulse output performance with less than 2ms of delay, and ±75µs of dither (accuracy), ensuring consistent and reliable triggering.

All Ivy Biomedical products comply with global standards for safety, EMC, quality management, and environmental requirements.

DIMENSIONS

Available in 24"/30"/36" lengths.
