Home   Products   Universal 511kev T-Vial Shield

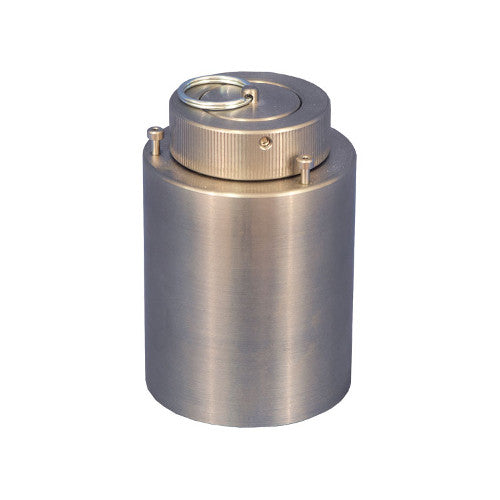

Universal 511kev T-Vial Shield

5530-2014

The 511 “T” Vial Shield is made entirely of Tungsten to provide the best protection for the user. The shield offers 1″ lead equivalent on all sides. “T” lifting handle is removable. Holds 10, 20 and 30cc Vials.

OVERVIEW

The 511 “T” Vial Shield is made entirely of Tungsten to provide the best protection for the user. The shield offers 1″ lead equivalent on all sides. “T” lifting handle is removable. Holds 10, 20 and 30cc Vials.

Capintec T-Vial shields have the same shielding characteristics as the lead vial shields with the added durability and greater stopping power of Tungsten.

FEATURES
  • The Tungsten T-Vial shield is more rugged than its lead counterpart.
  • The top features a sliding top that when opened allows access to the encased vial.
  • Vials can be loaded from top or bottom.

SPECIFICATIONS

DIMENSIONS

  • Outside Diameter: 37mm
  • Inside Diameter: 27mm
  • Height: 72mm
  • Tungsten Shielding Thickness: 5mm (8mm Pb Equivalence).
  • Weight: 7kg

Related Items

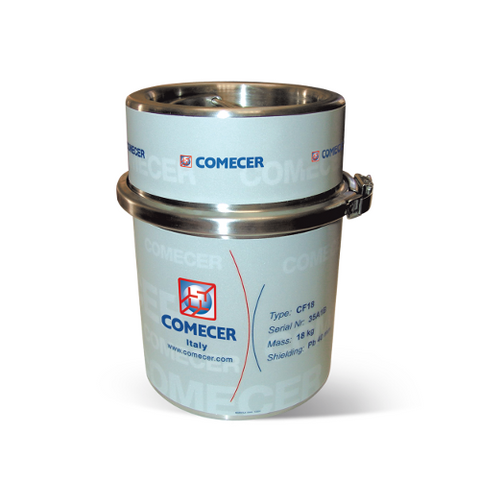

CF18 - Lead Shielded Container

The CF18 shielded container is made of 40 mm lead and fully coated with AISI 304 stainless steel. It is used for the transportation of... View full product details

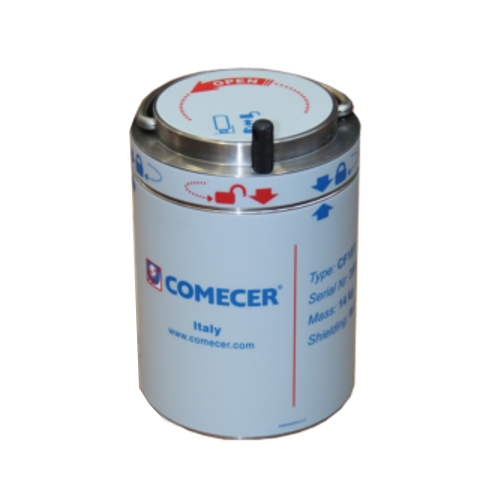

CF18-T - Tungsten Shielded Container

The shielded container CF18T is made up of wolfram and it is used to transport radioisotopes. The top is locked by means of a fixed... View full product details

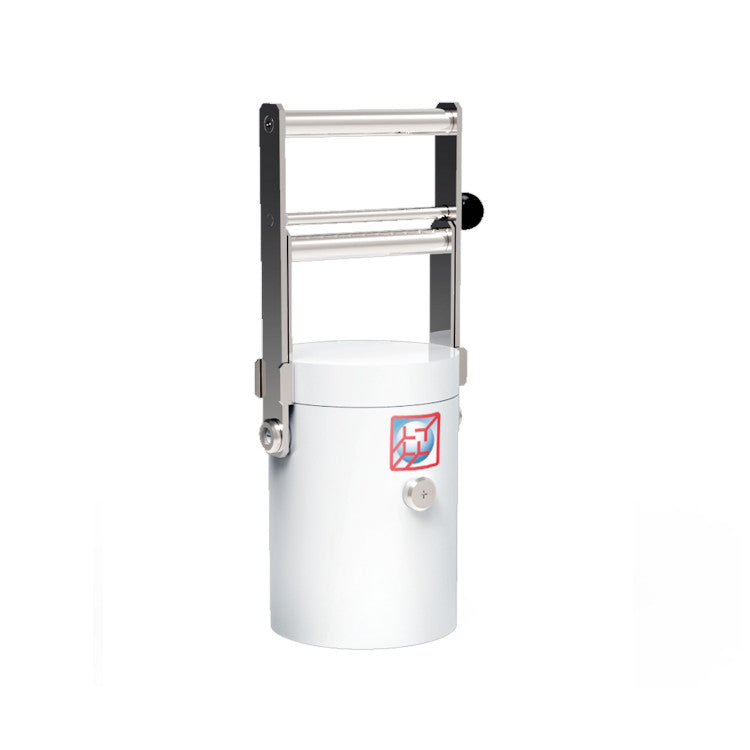

CP Series - Transport Container

Container for safe transport and storage inside the laboratory of sources and bottles vials containing radioactive substances.Cylindrical body and plug made of lead and treated... View full product details

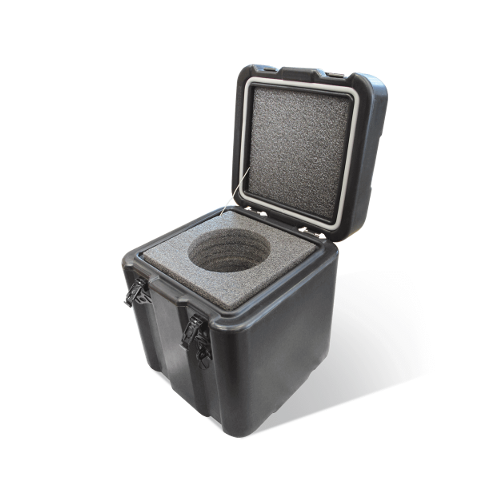

Type A - External Case for Transport (CF18-T)
